FSR Leopard 1/8 6S Electric Brushless Truggy Remote Control RC Car

• CONNECTION: Strengthening the CVD of the steering cup for greater durability.
• SHOCK ABSORPTION: Metal hydraulic suspension provides excellent filtering performance.
• RECEIVING WAREHOUSE: Prism support bars enhance the rigidity of the vehicle body.

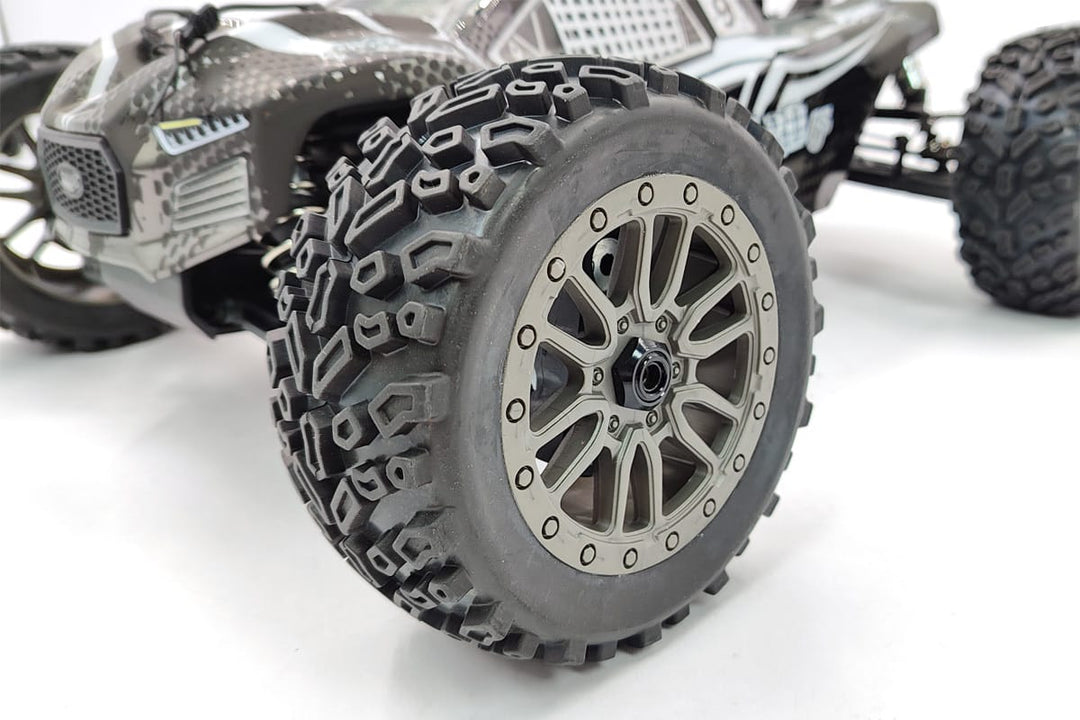

• ALL TERRAIN TIRES: The uneven tread provides grip on all terrains.
• HOBBYWNG BRUSHLESS MOTOR: 4274 2000KV Brushless Motor Quenching Strengthening Cup Connection Position.
• REAR BODY: Prism reinforced support bars provide better rigidity.

DIFFERENTIAL MECHANISM

• Metal steel large teeth can provide more stable and high torque output.
• Metal driving teeth and pins are more durable.
• Sealed differential housing with metal planetary gears inside.
• All metal gears, including drive planetary teeth, large teeth, etc., can provide more durable power output.

TRANSMISSION SHAFT

• Steel transmission shaft with a diameter of 4mm.
• The front wheels are designed with CVD.

SHOCK ABSORBER METAL FRAME

• The thickness of the front and rear metal shock absorbers of 6061 T6 is 5 millimeters.

MOTOR BASE

• Using 6061 T6 aluminum alloy is lighter and more durable.
• The simple and quick detachable motor base can facilitate the upgrading of the motor for use.
• Thickened metal shock absorbers can prevent deformation and increase durability in high-speed collisions.

SHOCK ABSORPTION

• All metal adjustable hydraulic shock absorbers have good rebound damping performance.
• The total length of the shock absorber is 110mm, the aperture length is 100mm, the outer diameter of the spring is 20mm, the spring diameter is 1.5mm.

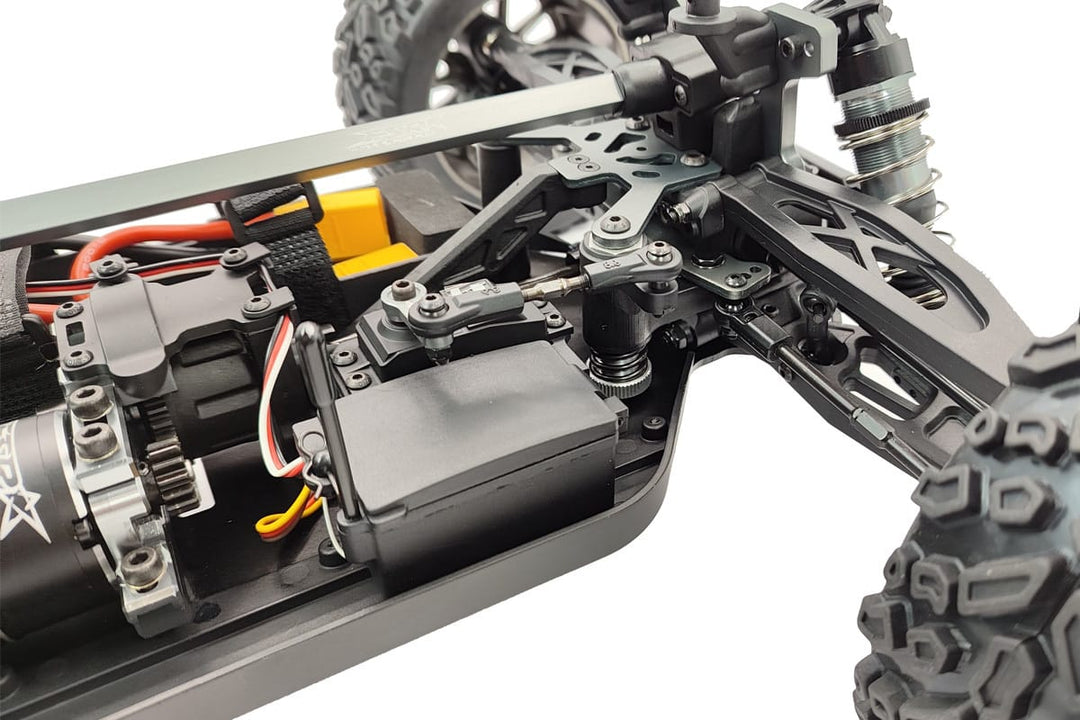

SERVO

• Torque 15kg-6V.
• Strong, metal gears used throughout.
• Waterproof, dustproof case.
• Dimensions: 40x38x20mm.

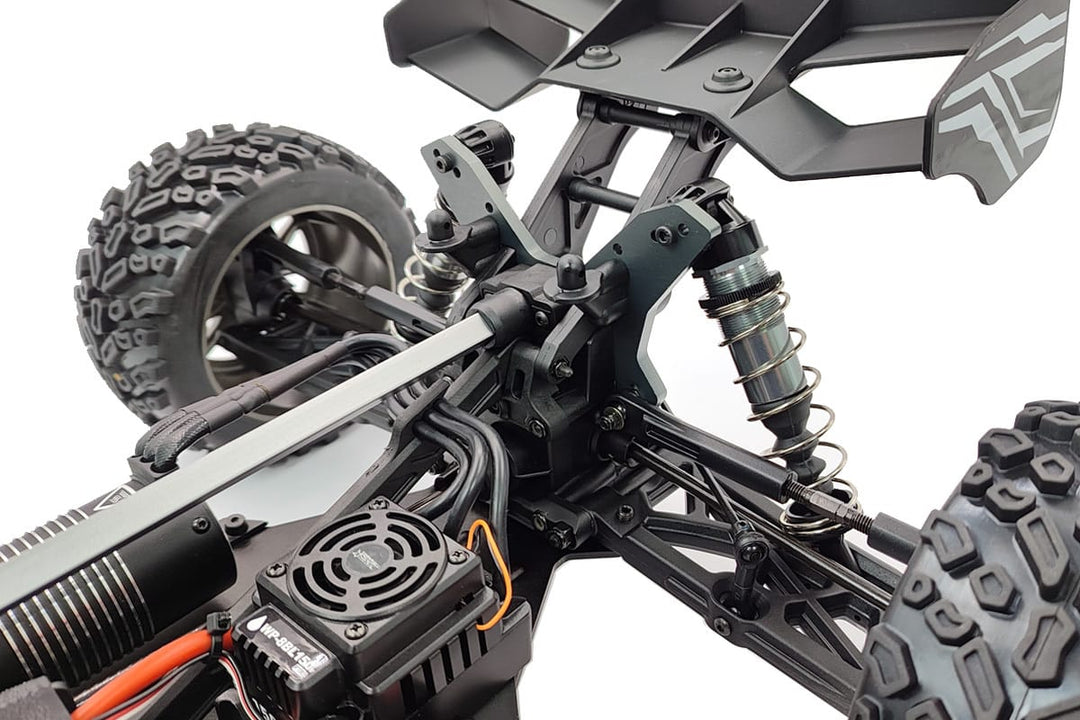

HOBBYWNIG ESC

• Waterproof, dustproof design.
• 150A, 6S LiPo ready (3S、4S & 6S compatible),Peak 960A.
• A full speed fan can lower the temperature of the electric regulator.
• High Quality 10awg wires.
• Low voltage cut-off and thermal overload protection.
• User programmable start level, brake, voltage protection, reverse speed, and motor timing settings.

HOBBYWNIG BRUSHLESS MOTOR

• 2000Kv 4274 size 6S brushless motor.
• Up to 50000 RPM.
• The combination of black and silver is more fashionable.
• 4-pole construction for smooth, consistent power.
• Super strong 5mm shaft.
• 4mm gold bullet connectors for reliable and efficient connection.

FSR GT15G RADIO RECEIVER

• 4-channel receiver with light controlled gyroscope.
• Ergonomic steering wheel for precise control.
• 2.4GHz connection built around DSMR technology.
• The maximum input voltage of the receiver is 9V.
• The receiver comes with an enhanced signal line, and the remote control distance can reach 300 meters.

PACKING LIST

(Only Battery & Charger not include under packing list and need to buy separate)

• The (RTR Version) Racing 1/8 LEOPARD CAR
• Remote Controller
